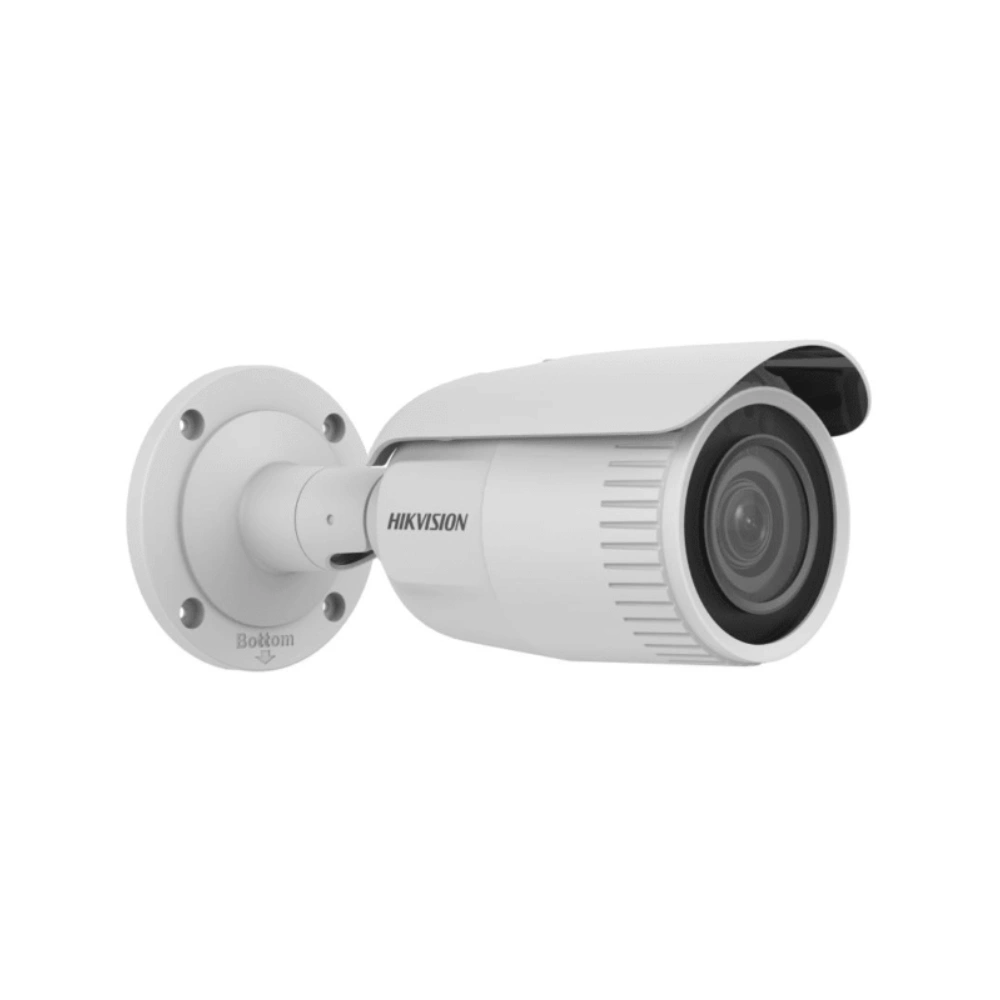

CAMARA DE SEGURIDAD DS-2CD1643G0-IZ
$85.000 Iva incluido
AGOTADO
Cámara bala IP 4MP con lente varifocal motorizada, visión nocturna EXIR 2.0, compresión H.265+ y protección IP67 para exteriores.
Sin existencias
-
Resolución de 4 MP (2560×1440)
-
Lente varifocal motorizada de 2.8 a 12 mm
-
Tecnología EXIR 2.0 para visión nocturna avanzada
-
WDR de 120 dB para imágenes claras con retroiluminación
-
Compresión eficiente H.265+
-
Ranura para tarjeta SD de hasta 256 GB
-
Protección IP67 contra agua y polvo
La cámara de red bala varifocal DS-2CD1643G0-IZ ofrece imágenes nítidas y de alta calidad con resolución de 4 MP, perfecta para vigilancia tanto en interiores como exteriores. Su lente varifocal motorizada de 2.8 a 12 mm permite un ajuste fácil y flexible para cubrir áreas amplias o detalles específicos según lo requiera la instalación.
Equipado con tecnología avanzada como EXIR 2.0 para visión nocturna de largo alcance, esta cámara garantiza imágenes claras incluso en condiciones de poca luz o con fuerte retroiluminación gracias a su WDR de 120 dB. Su eficiente compresión H.265+ optimiza el almacenamiento y reduce el uso del ancho de banda, mientras que su diseño resistente IP67 protege contra polvo y agua, asegurando durabilidad en ambientes exteriores.
| Category | Specification |
|---|---|
| Camera | |
| Image Sensor | 1/3″ Progressive Scan CMOS |
| Max. Resolution | 2560 × 1440 |
| Minimum Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Wide Dynamic Range | 120 dB |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan 0° to 360°, Tilt 0° to 90°, Rotation 0° to 360° |
| Lens | |
| Type | Varifocal lens, motor-driven, 2.8 to 12 mm |
| Focal Length & FOV | 2.8 to 12 mm; Horizontal FOV 102° to 31°, Vertical FOV 55° to 18°, Diagonal FOV 122° to 36° |
| Lens Mount | Ø14 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| Illuminator | |
| IR Wavelength | 850 nm |
| IR Range | Up to 50 m |
| Video | |
| Main Stream (50 Hz) | 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720) |
| Main Stream (60 Hz) | 20 fps (2560 × 1440), 30 fps (1920 × 1080, 1280 × 720) |
| Sub-Stream (50 Hz) | 25 fps (1280 × 720, 640 × 480, 640 × 360) |
| Sub-Stream (60 Hz) | 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video Compression | Main: H.265+/H.265/H.264+/H.264; Sub: H.265/H.264/MJPEG |
| Video Bitrate | 32 Kbps to 8 Mbps |
| H.264 Profiles | Baseline, Main, High |
| H.265 Profile | Main Profile |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Audio | |
| Compression | G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM, AAC-LC |
| Bitrate | 64 Kbps (G.711), 16 Kbps (G.722.1, G.726), 32-160 Kbps (MP2L2), 16-64 Kbps (AAC-LC) |
| Sampling Rate | 8 kHz / 16 kHz |
| Noise Filter | Yes |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface, ISAPI |
| Users & Levels | Up to 32 users; Administrator, Operator, User |
| Client Software | iVMS-4200, Hik-Connect |
| Web Browser Support | IE 10+ (plug-in), Chrome 57.0+, Firefox 52.0+ (plug-in free) |
| Image | |
| Settings | Saturation, brightness, contrast, sharpness, AGC, white balance (software/browser adjustable) |
| Day/Night Switch | Auto, Schedule, Day, Night |
| Image Enhancement | BLC, 3D DNR |
| Interface | |
| Ethernet | 1 RJ45 10 M/100 M self-adaptive port |
| Storage | Built-in microSD slot, supports up to 256 GB |
| Audio Input/Output | 1 input (line in), 1 output (line out), non-equilibrium, max amplitude 3.3 Vpp |
| Alarm | 1 input, 1 output, max 12 VDC, 30 mA |
| Reset Key | Yes |
| Event | |
| Basic Events | Motion detection, video tampering alarm, exception |
| Linkage | Upload to FTP, notify surveillance center, send email, upload to memory card, trigger recording, trigger capture |
| General | |
| Power Supply | 12 VDC ± 25%, 0.9 A, max 11 W; PoE 802.3af, Class 3, 36-57 V, max 12.9 W |
| Material | Metal |
| Dimensions (Camera) | Ø105 mm × 244.4 mm (4.1″ × 9.6″) |
| Package Dimensions | 315 mm × 137 mm × 141 mm (12.4″ × 5.4″ × 5.6″) |
| Weight (Camera) | Approx. 1035 g (2.3 lb.) |
| Weight (Package) | Approx. 1550 g (3.4 lb.) |
| Storage Conditions | -30 °C to 60 °C (22 °F to 140 °F), ≤95% humidity (non-condensing) |
| Operating Conditions | -30 °C to 60 °C (22 °F to 140 °F), ≤95% humidity (non-condensing) |
| Languages | English, Ukrainian |
| Functions | Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| Certifications | |
| EMC | FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 50130-4:2011 + A1:2014); RCM (AS/NZS CISPR 32:2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32:2015, KN 35:2015) |
| Safety | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am1:2009 + Am2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am1:2009 + Am2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010 + A1:2013 + A2:2015) |
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006) |
| Electrical Safety Protection | IP67 (IEC 60529-2013) |
| Peso | 1 kg |
|---|---|
| Dimensiones | 14,1 × 13,6 × 31,5 cm |
