PFM942I-20-3

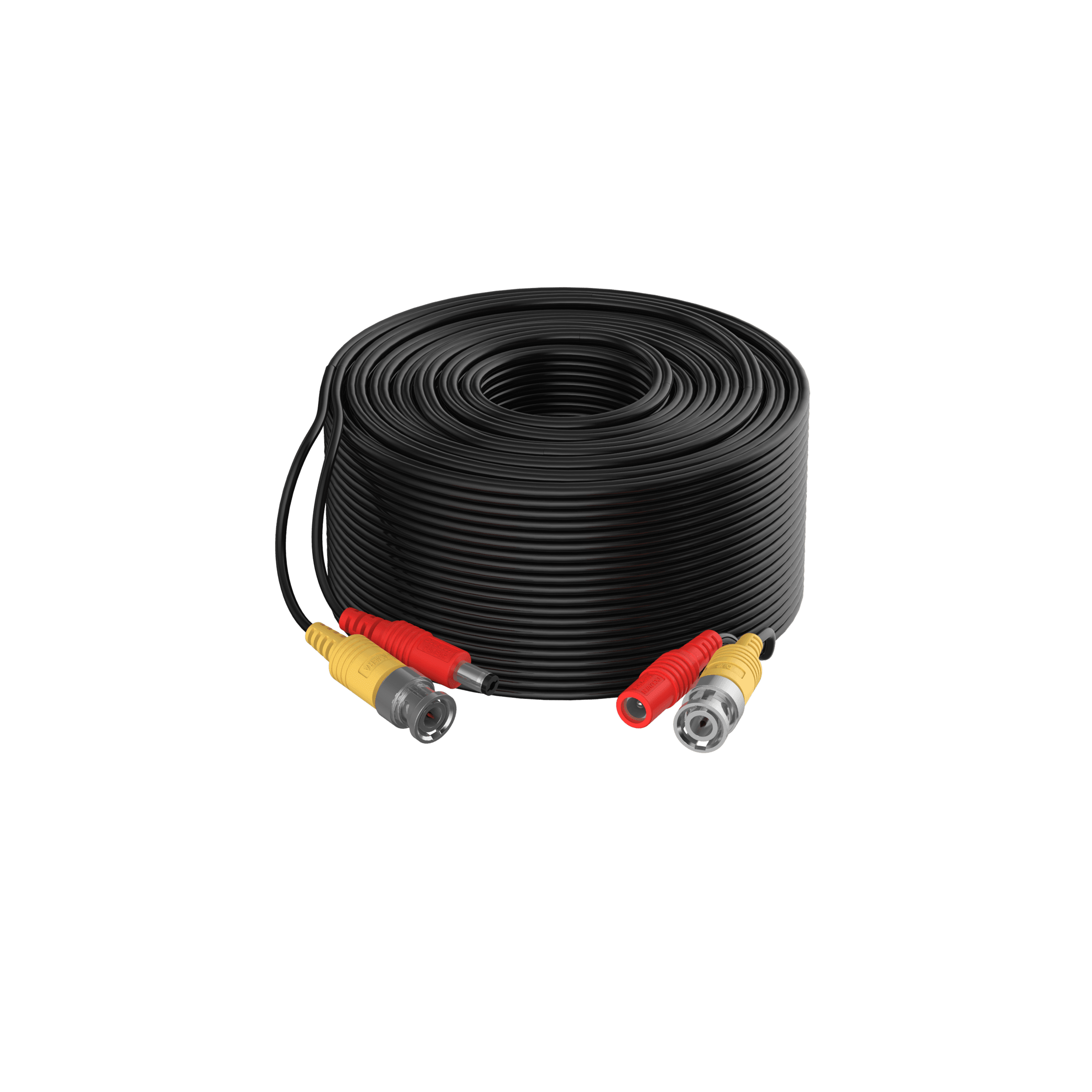

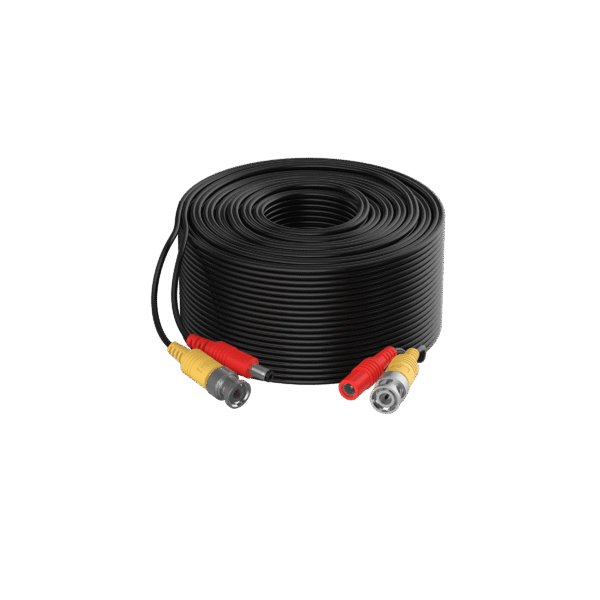

CCTV Video and Power Cable
> Compatible with all CCTV analogy DVR systems, transmitting video and power simultaneously, saving wiring and no delay
> Work for 720p/1080p/4MP/5MP/4K, AHD/CVI/TVI/CVBS security camera system.
> High-purity oxygen-free copper conductor material, featuring good transmission performance; Flame-retardant PVC outer sheath for weatherproof indoor and outdoor use.
> Pre-made cable BNC and DC power connectors(¯2.1mm) ready to go, can directly connect the camera and back-end equipment.
> Cable length 20 meters/bag.
| Conductor |
| Material |
Coaxial cable/Power wire: oxygen-free copper |
| Diameter |
Coaxial cable/Power wire: 7/0.127 mm ± 0.01 mm (7/0.005″ ± 0.0004″) |
| Wire Gauge |
Coaxial cable/Power wire: 28AWG |
| Insulation |
| Material |
Coaxial cable: PE Foam; Power wire: PVC |
| Thickness |
Coaxial cable: ? 0.6 mm (0.024″); Power wire: ? 0.2 mm (0.008″) |
| Diameter |
Coaxial cable: 1.9 mm ± 0.2 mm (0.075″ ± 0.008″); Power wire: 1.1 mm ± 0.2 mm (0.043″ ± 0.008″) |
| Color |
Coaxial cable: 1 core (white); Power wire: 2 cores (red & black) |
| Inner Shield |
| Material |
Coaxial cable: single-sided aluminum foil composite; Power wire: NA |
| Specification |
Coaxial cable: T ? 0.026 mm (0.001″), W: 7 mm ± 1 mm (0.276″ ± 0.039″); Power wire: NA |
| Overlap Rate |
Coaxial cable: ? 25%; Power wire: NA |
| Outer Shield |
| Material |
Coaxial cable: Copper clad aluminum (28) + oxygen-free copper (4); Power wire: NA |
| Specification |
Coaxial cable: 16 ? 2 ? 0.10 mm ± 0.01 mm (0.004″ ± 0.0004″); Power wire: NA |
| Lay Length |
Coaxial cable: 18 mm ± 6 mm (0.71″ ± 0.24″); Power wire: NA |
| Shield Coverage |
Coaxial cable: ? 45%; Power wire: NA |
| Sheath |
| Material |
Coaxial cable/Power wire: PVC |
| Min. Average Thickness |
Coaxial cabl/Power wire: ? 0.2 mm (0.008″) |
| Diameter |
Coaxial cable/Power wire: 2.8 mm ± 0.2 mm (0.11″ ± 0.008″) |
| Color |
Coaxial cable/Power wire: Black |
| Electrical |
| Max. DC Resistance of a Single Conductor |
Coaxial cable/Power wire: ? 21.8?@100 m |
| Min. Insulation Resistance |
Coaxial cable/Power wire: 5000M?ákm |
| Dialectric Strength |
Coaxial cable/Power wire: No breakdown with 2.5kV DC for 2s |
| Max. Supporting Power |
3.3W |
| Transmission |
| Characteristic Impedance |
Coaxial cable: 75? ± 10?; Power wire: NA |
| Environmental |
| Operating Temperature |
Ð20¡C to +60¡C (Ð4¡F to 140¡F) |
| Installation Temperature |
0¡C to +50¡C (+32¡F to 122¡F) |
| Storage Temperature & Humidity |
Ð10¡C to +40¡C (+14¡F to +104¡F), < 60% (RH) |
| Flame-retardant |
| Compliance Standard |
EN 50575: 2014+A1: 2016 |
| Compliance |
| Compliance Standard |
Q/DXJ 195-2020 |
| Certification |
CPR (Eca) |
| Packaging |
| Cable Length |
20 m ± 0.3 m (65.62 ft ± 7.87 ft) |
| Inner Carton Dimensions |
220 mm ? 245 mm (8.66″ ? 9.65″) (L ? W) |
| Net Weight |
464 g ± 60 g (1.02 lb ± 0.13 lb) |
| Gross Weight |
472 g ± 60 g (1.04 lb ± 0.13 lb) |
| Packaging Dimensions |
399 mm ? 273 mm ? 334 mm (15.71″ ? 10.75″ ? 13.15″) (L ? W ? H) |
| Packaging Method |
20 m/carton, 30 inner cartons in one package |
